Recently, PCBWay introduced a new plugin named **PCBWay Fabrication Toolkit** into KiCad. With just a single mouse click, it automatically exports four essential files from your layout: Gerber files, IPC-Netlist files, BOM files, and Pick and Place files. This feature significantly boosts the efficiency of pre-production tasks.

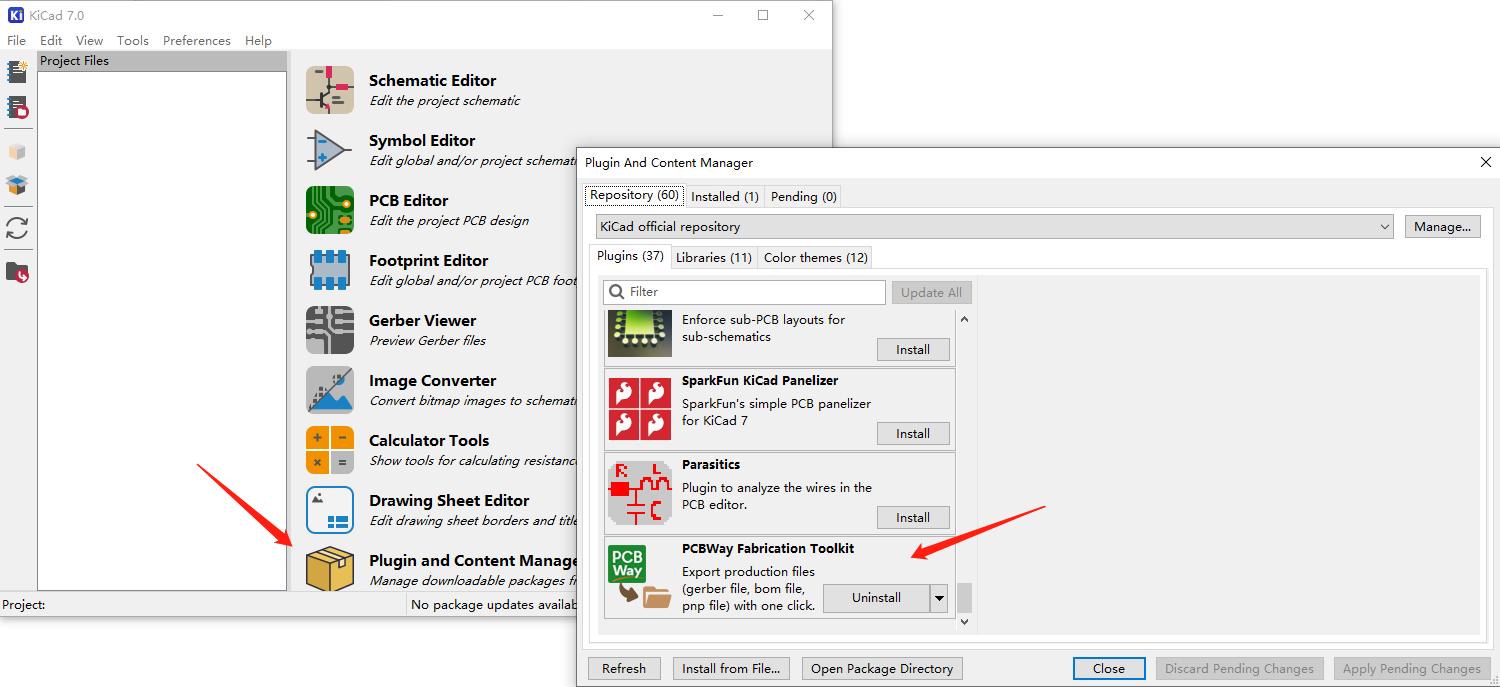

### Installation via Official KiCad Repositories
To get started, you can easily install this plugin directly from KiCad’s official repositories. After installation, you’ll be able to generate BOM files and centroid files right away.
#### Installation Process:

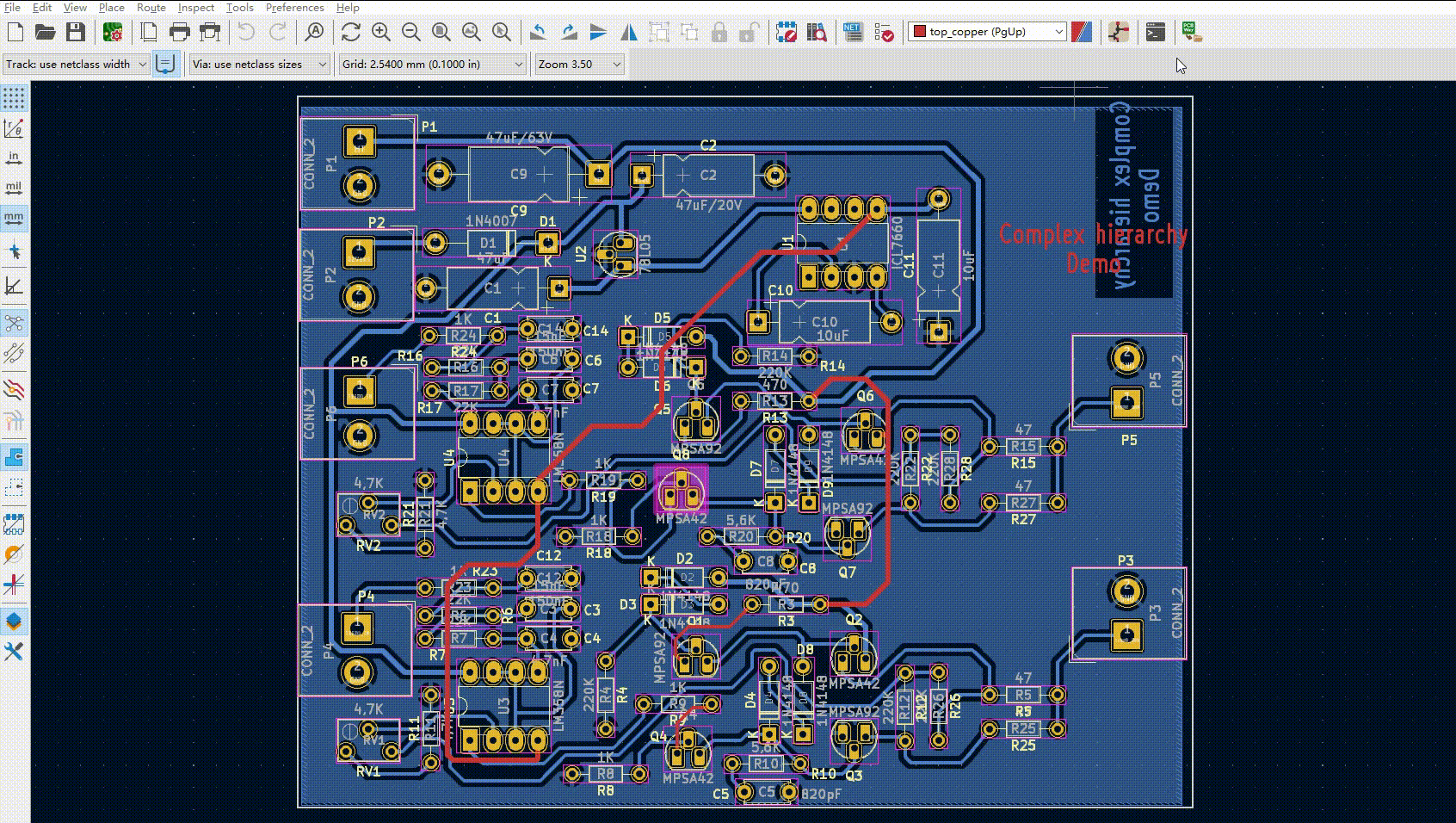

Once installed, you can use the plugin to create necessary files for production. Here's a quick process demonstration:
After exporting these files, simply send them over to PCBWay, and their team will review and use them for manufacturing.
> **Important Note:** If you plan to place an order for component placement, make sure to include MPN (Manufacturer Part Number) details in your design files. This ensures that the quoting team can source the exact components you need.
### Manual Installation
In addition to the official repository method, you can manually install the plugin by downloading the latest ZIP file from GitHub: [PCBWay Fabrication Toolkit for KiCad](https://github.com/pcbway/PCBWay-Fabrication-Toolkit-for-KiCad).

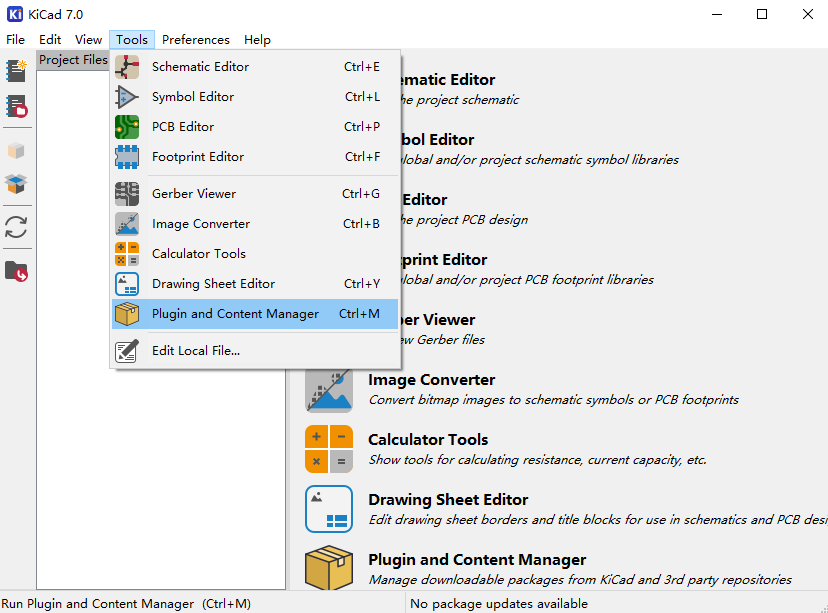

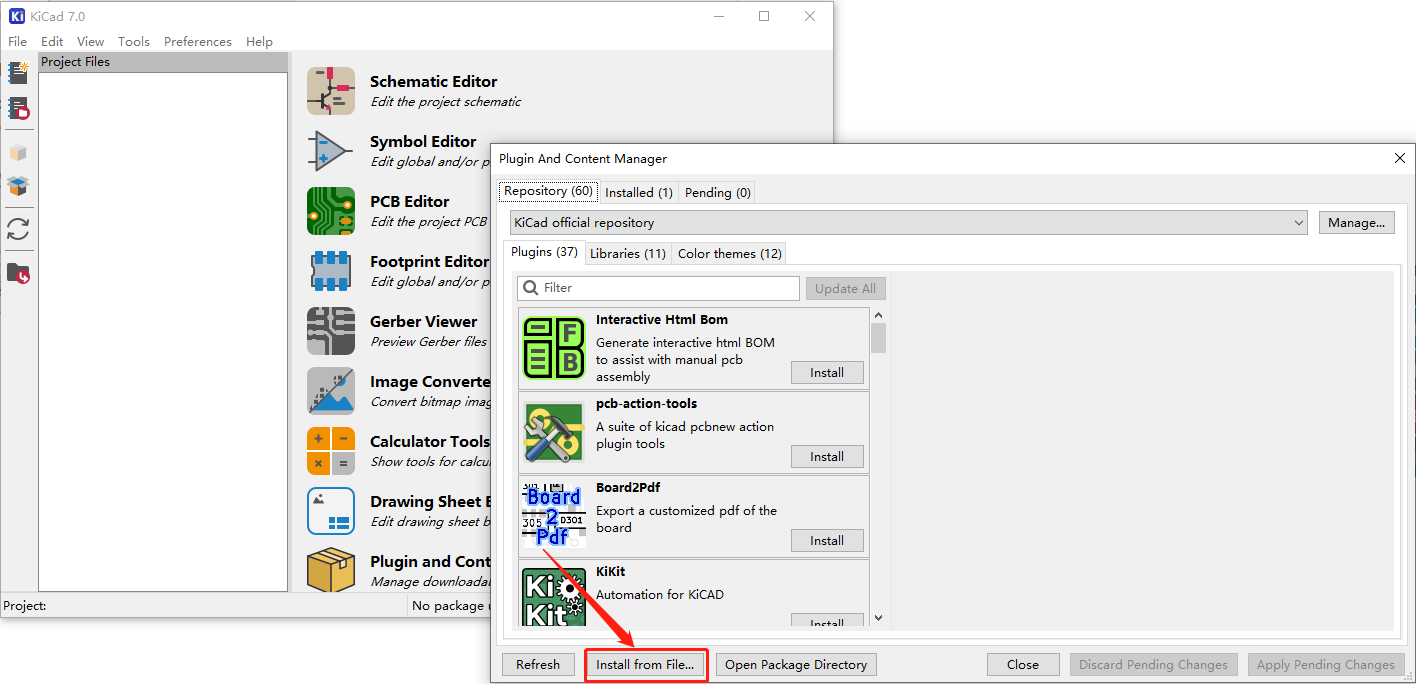

To do so, open the "Plugin and Content Manager" from KiCad’s main window and install the ZIP file using the "Install from File" option.
#### Steps:
1. Open KiCad.
2. Navigate to the Plugin and Content Manager.
3. Select “Install from File.â€
4. Choose the downloaded ZIP file.
### Understanding the BOM File
The BOM (Bill of Materials) file contains all the information about the components used in your design. To expedite the quoting process, ensure that your BOM includes the following details:
1. **Designator** (Required)
2. **Quantity** (Required)
3. **MPN/Part Number** (Required)
4. **Package/Footprint** (Required)
5. **Manufacturer** (Optional)
6. **Description/Value** (Optional)
If you have any additional feedback or suggestions, feel free to drop a comment below. PCBWay is committed to offering top-notch service to all its users.
---
